Plenum VGA cables are VGA cables built with plenum-rated jackets, allowing legal installation in return-air plenum spaces in commercial buildings. This subcategory includes plenum-rated VGA cables (with the parallel audio cable also plenum-rated), plenum-rated VGA extenders over CAT or fiber, and plenum-rated specialty VGA assemblies. Although VGA has been largely replaced by HDMI and DisplayPort in new installations, vast amounts of existing equipment still uses VGA, and plenum-rated VGA is required wherever those installations pass through plenum spaces.
Schools, training facilities, classrooms, multimedia rooms, gaming arcades, hospitals, and many corporate boardrooms still have VGA in active use, alongside or instead of newer interfaces. Education in particular runs mixed environments where VGA must continue to work for legacy projectors, classroom displays, and student computers. When these installations need new or repaired cable in plenum spaces, plenum-rated VGA is the right (and code-required) choice.

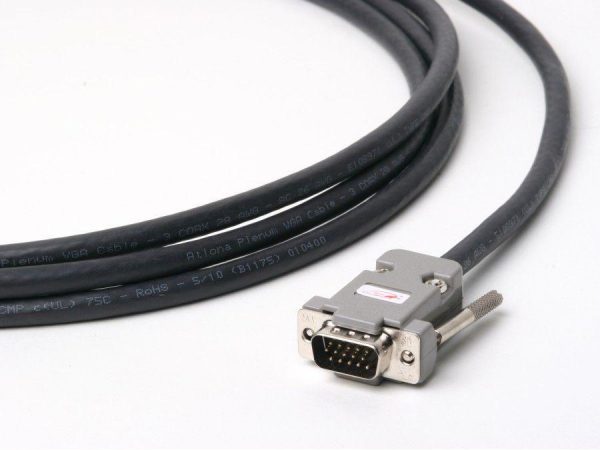

Plenum VGA cable uses coaxial construction for each of the RGB channels inside a plenum-rated outer jacket, with proper shielding to maintain signal quality. The cable also typically includes a parallel plenum-rated 3.5 mm stereo audio cable, since VGA does not carry audio on its main connector. The 15-pin D-Sub VGA connectors are at each end, with thumbscrew fasteners.
Plenum VGA supports the same resolutions as non-plenum VGA of the same length: up to 2K (2048x1536) at short distances, with 1920x1080 reliable in typical installations. As an analog signal, VGA quality degrades with cable length and electrical noise. Practical limit is about 15 meters (50 feet) for 1080p. For longer plenum runs, use plenum-rated VGA-over-CAT extenders (with plenum-rated CAT cable) or plenum-rated VGA-over-fiber for very long distances.
Most plenum VGA cables for commercial use come bundled with a parallel plenum-rated 3.5 mm or RCA stereo audio cable, so video and audio travel together through the plenum to the destination. Without the bundled audio cable, you must run a separate plenum-rated audio cable in parallel. Always plan parallel audio cabling for any VGA install, with both video and audio cables plenum-rated where required.
Plenum VGA cables use standard 15-pin D-Sub connectors with thumbscrews, fully compatible with all VGA equipment. The plenum rating is in the cable jacket and construction, not the connector. This means plenum VGA plugs into the same source and display equipment as non-plenum VGA.
Plenum VGA is essential in commercial installations with existing VGA infrastructure that runs through plenum spaces: schools and universities (above ceilings in classrooms and lecture halls, for legacy projectors and student monitors), training facilities and corporate education rooms, multimedia rooms in offices, hospitals (some legacy medical and administrative displays still use VGA), corporate boardrooms with mixed-generation infrastructure, and government and institutional buildings with installed VGA projectors and monitors.
You need plenum-rated VGA whenever the cable will be installed in a return-air plenum space: typically above suspended ceilings in commercial buildings. This applies to any VGA cable run in such spaces, whether new installation, repair, or extension of an existing system. The plenum requirement is code-mandated for fire safety regardless of the signal type. If a specific building has plenum ceilings, all the low-voltage cable in those plenum spaces must be plenum-rated, including VGA.
Often yes. The 15-pin VGA connector carries only video (RGB plus sync), so audio must run on a separate cable. Most plenum VGA cables for commercial use come bundled with a parallel plenum-rated 3.5 mm or RCA stereo audio cable, so video and audio reach the destination together. Without the bundled audio cable, you need to run a separate plenum-rated audio cable in parallel. When ordering plenum VGA for an installation, always confirm whether the audio cable is bundled or whether you need to specify it separately.
The same as standard VGA: about 15 meters (50 feet) for 1080p with quality cable. Beyond that, ghosting, color shifts, and softness become visible. For longer plenum runs, use plenum-rated VGA extenders over CAT cable (typically 100 meters or more depending on resolution) or plenum-rated VGA over fiber for very long distances. The extender cable (CAT or fiber) must itself be plenum-rated where required.
At short distances yes, up to 2K (2048x1536) at 60 Hz on quality cable. As an analog signal, VGA's achievable resolution depends heavily on cable quality and length, and plenum cable performs similarly to non-plenum cable of equivalent construction. For installations needing 2K or higher resolutions over plenum runs, use very short cable runs (under 5 meters), or switch to digital interfaces (HDMI, DisplayPort) over plenum-rated digital cable or extenders.
VGA remains in service in many specific environments: schools and universities with legacy projectors and student monitors, training facilities and corporate education rooms with mixed-generation equipment, hospitals with legacy administrative and medical displays, government and institutional buildings with installed VGA infrastructure, and any environment where the cost of replacing all the VGA equipment is not justified. Plenum-rated VGA exists to serve cable runs and repairs in those installations, which often remain in service for many more years before VGA is phased out.
Schools and universities (above ceilings in classrooms, lecture halls, and gymnasium installations with legacy projectors and student monitors), training facilities and corporate education rooms (above ceilings serving older projectors that have not been replaced with HDMI displays), multimedia rooms in office buildings, hospitals (above ceilings serving administrative and some medical displays still using VGA), corporate boardrooms with mixed-generation infrastructure, government and institutional buildings with installed VGA projectors and monitors, and any commercial AV installation where existing VGA infrastructure passes through plenum spaces and needs replacement or extension.
