Other Plenum Solutions

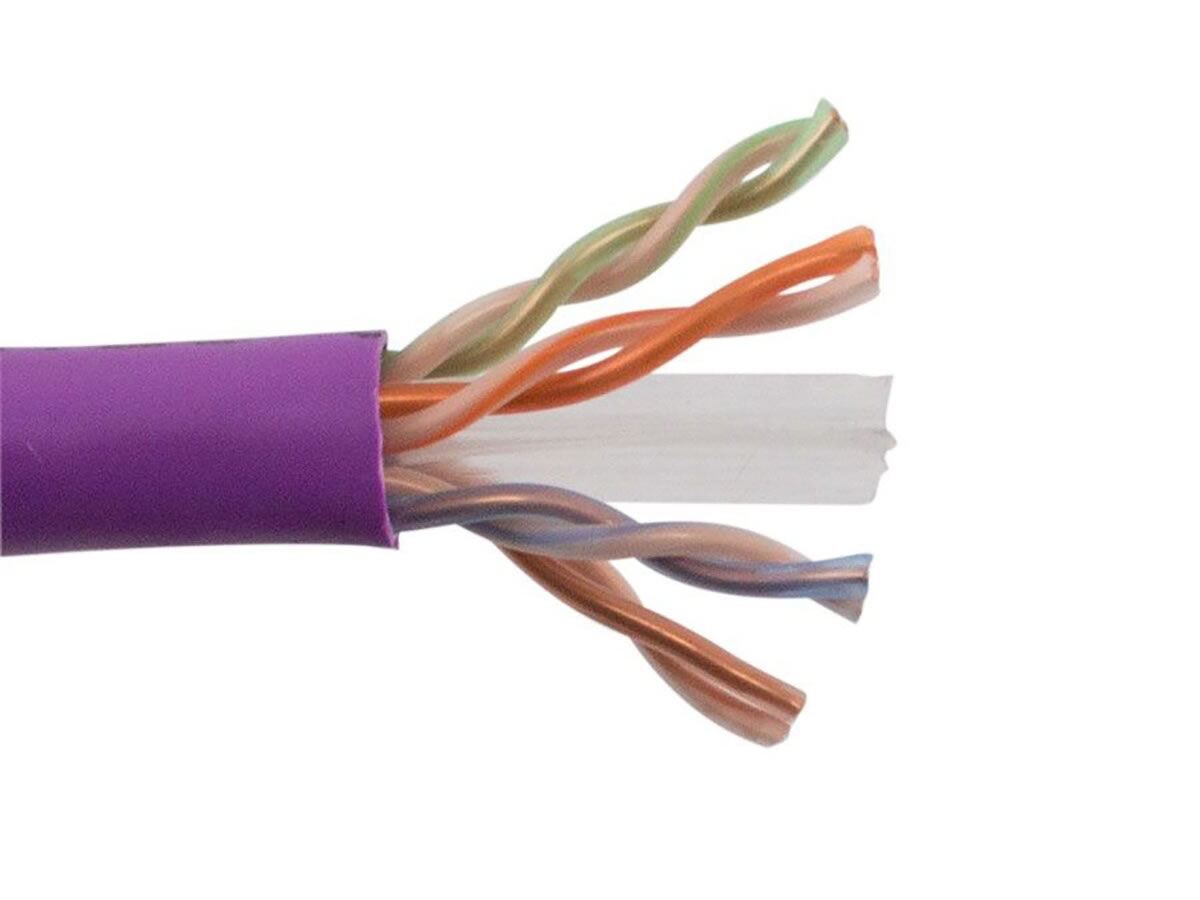

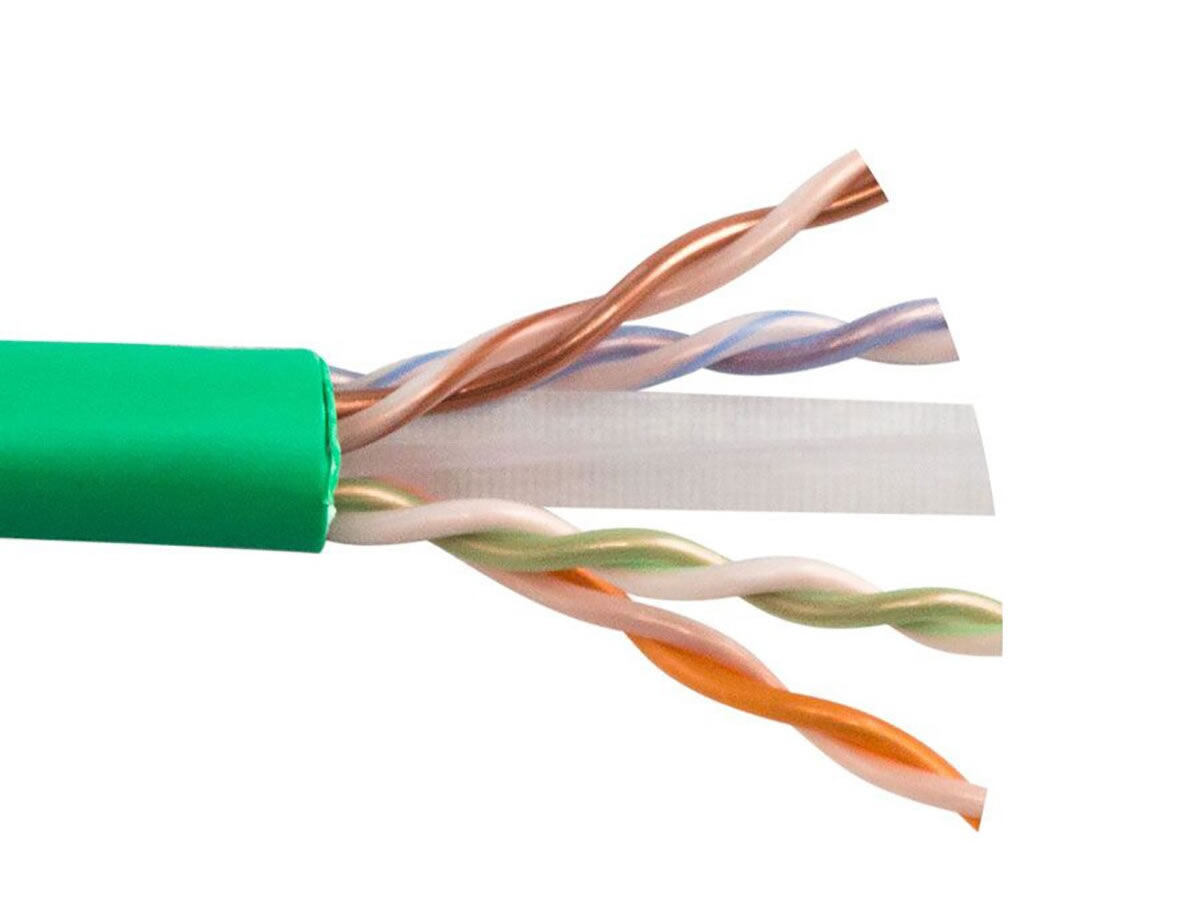

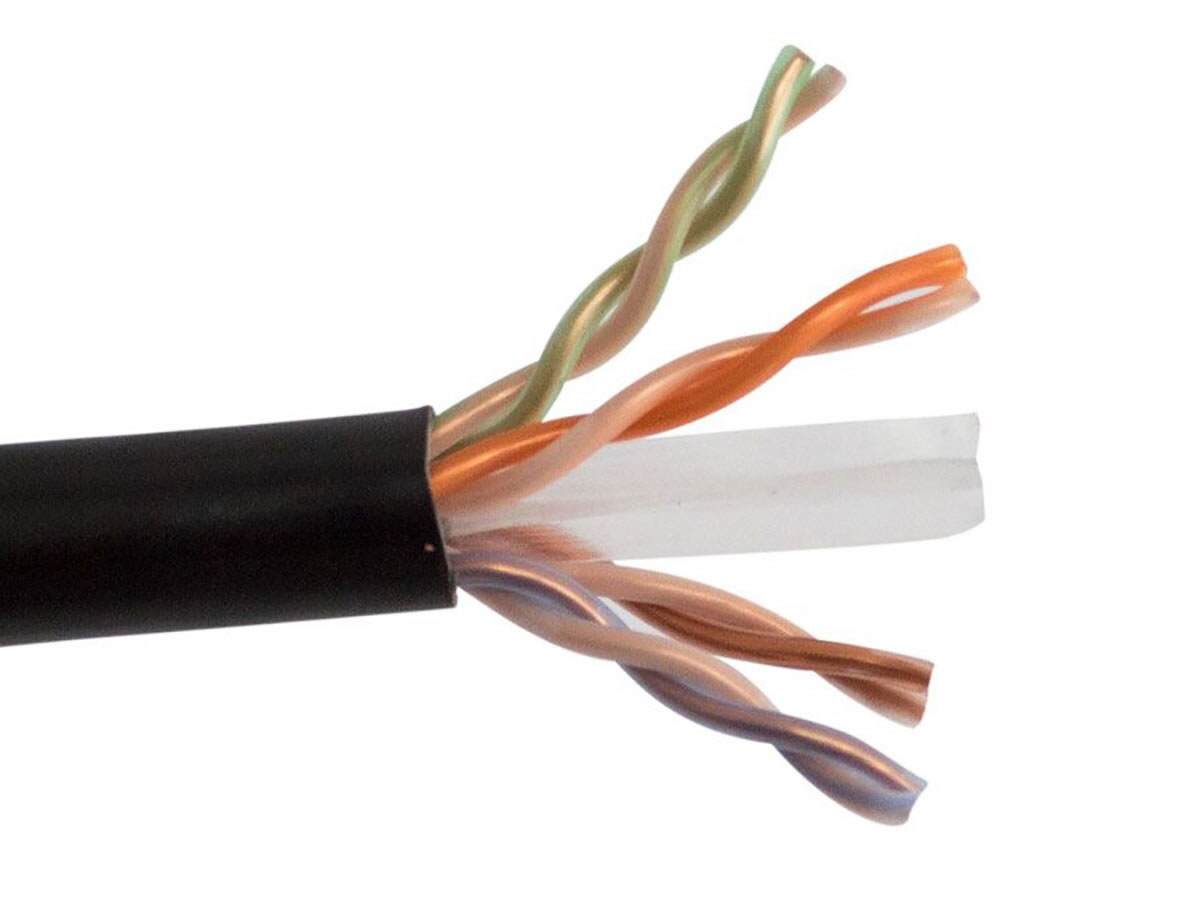

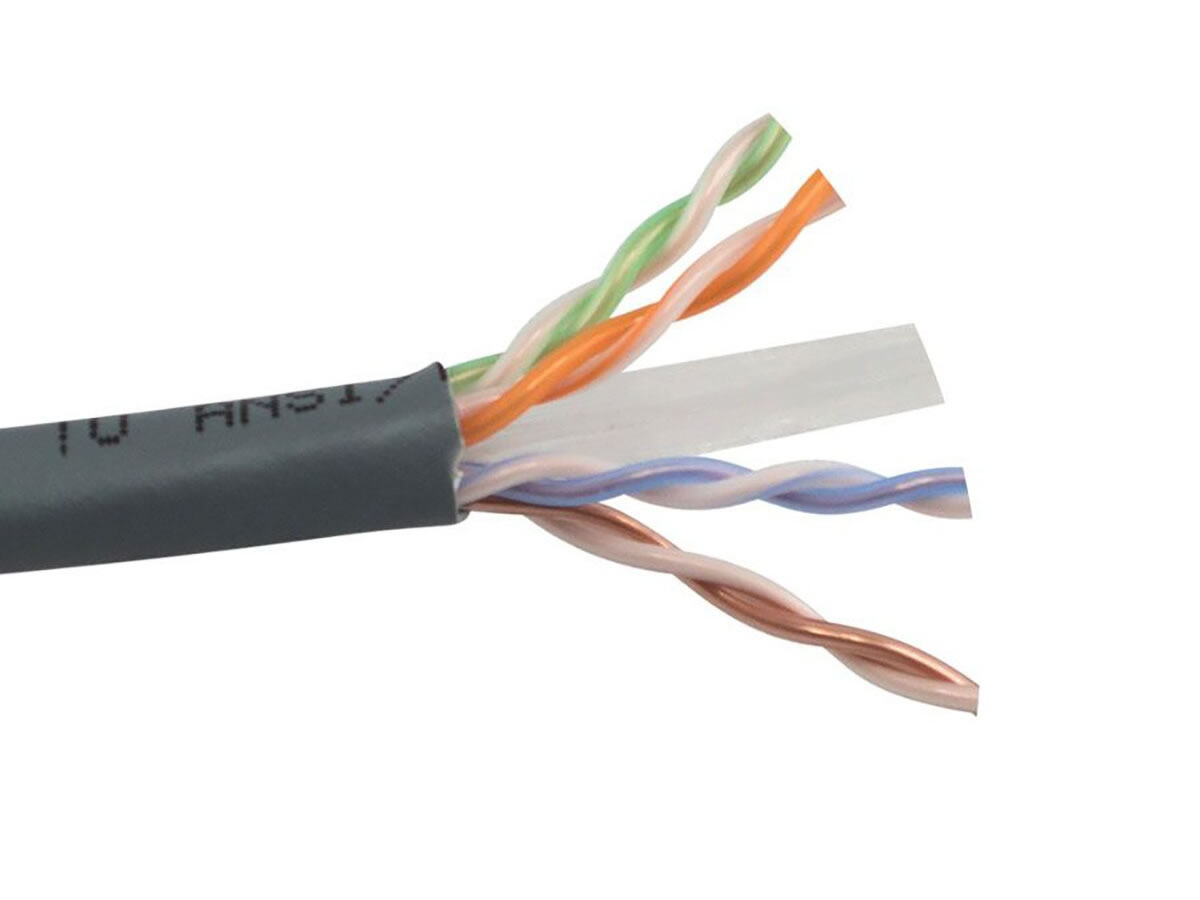

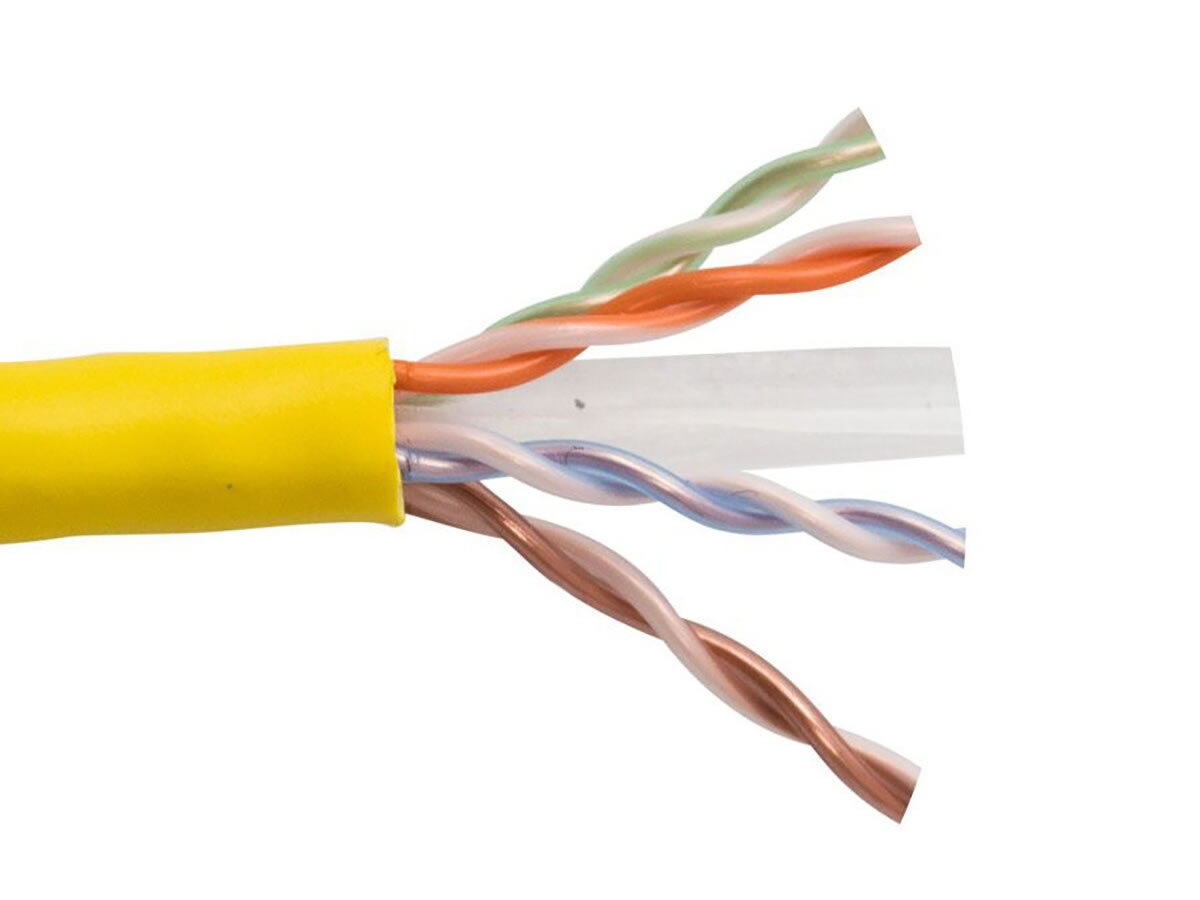

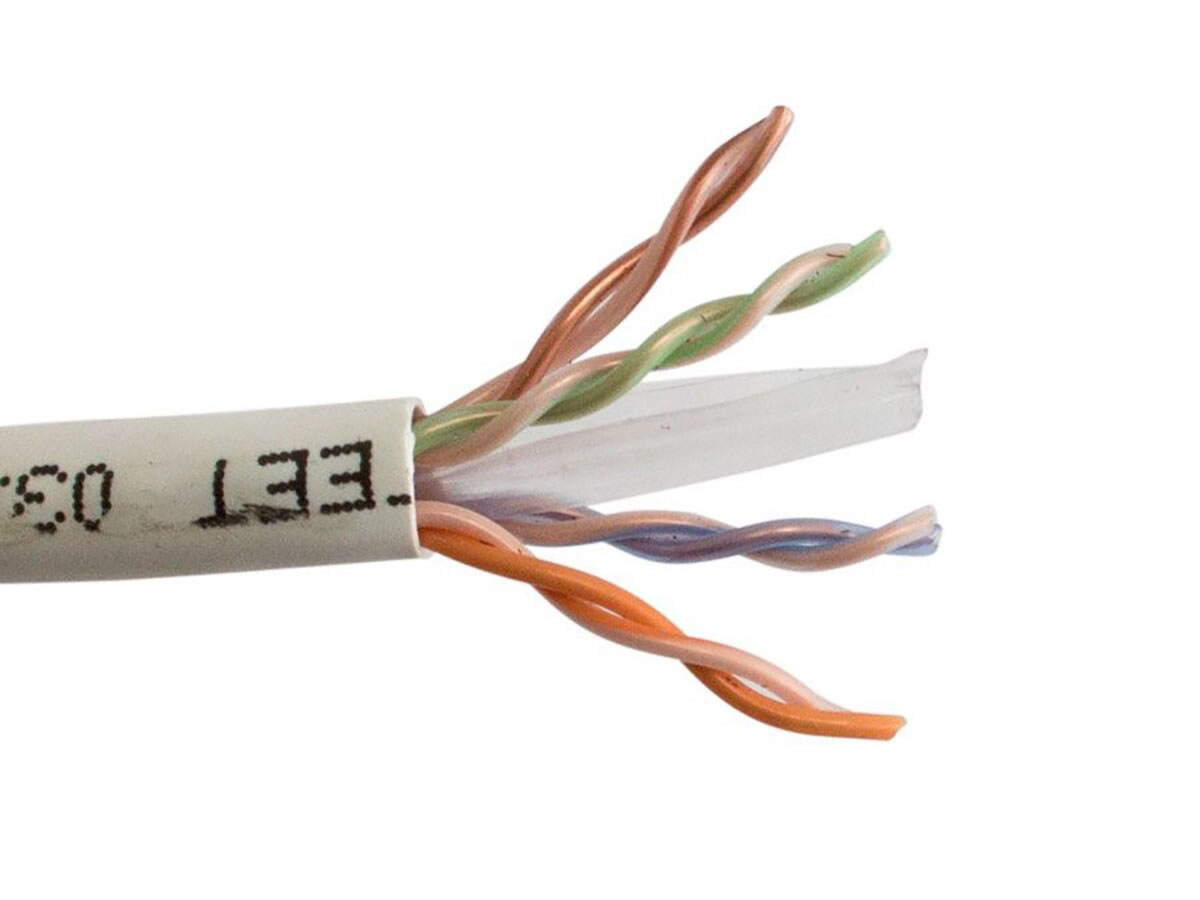

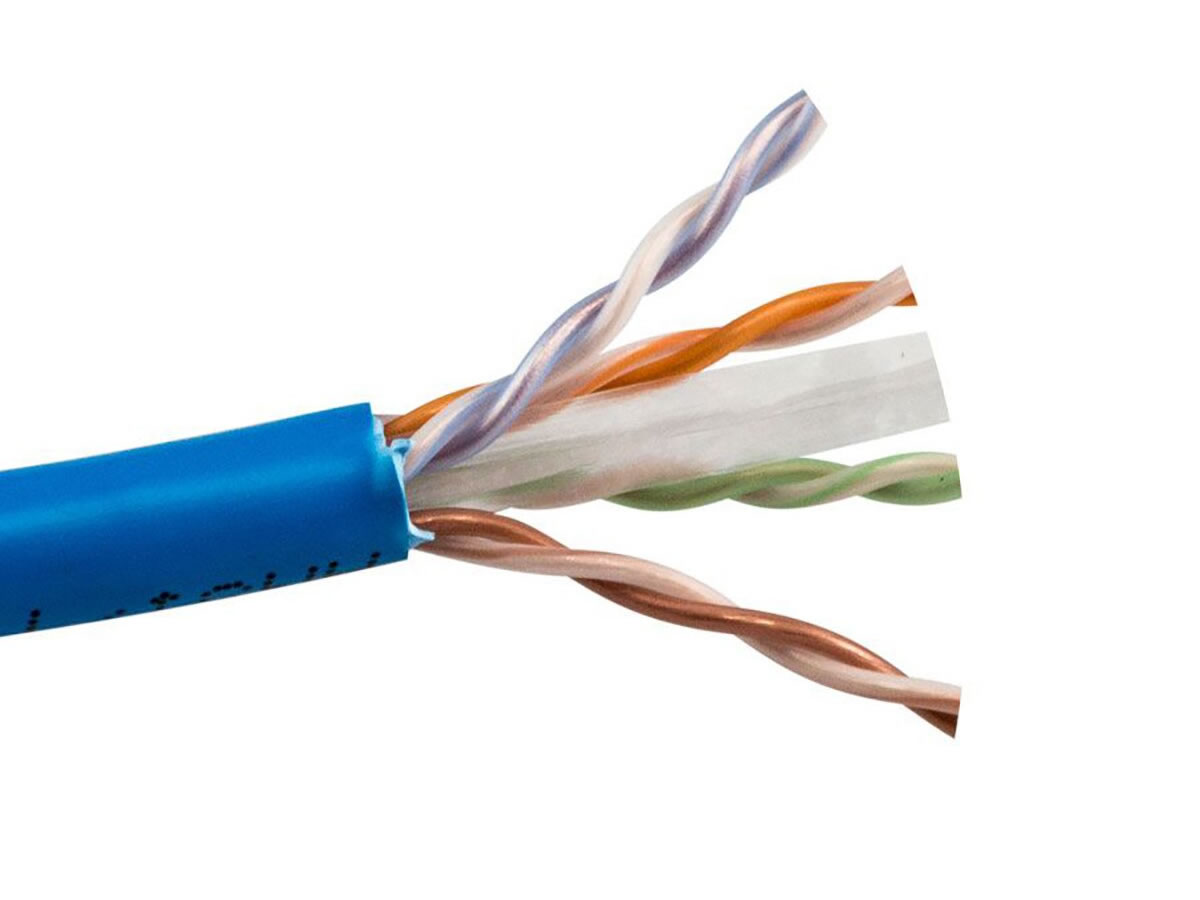

Most low-voltage cable types come in plenum versions: CAT5e and CAT6 network cable (CMP rated), speaker cable (CL2P or CL3P rated), coaxial cable for CCTV and TV distribution (CATVP or CMP rated), fiber optic cable (OFNP non-conductive, OFCP conductive armored), USB extension cables, IR control cable, DisplayPort cable, SDI coaxial cable, fire alarm cable, security cable, and many specialty cables. Whenever you need cable in a plenum space, look for the plenum-rated version of the specific cable type your installation requires.

Yes, almost always. In commercial buildings with plenum ceilings, the speaker cable run from the amplifier rack through the ceiling cavity to each speaker passes through plenum space, so plenum-rated speaker cable (CL2P or CL3P) is required by code. This is true for background music systems in restaurants, retail, and offices; PA and paging systems in schools and warehouses; and any installation with ceiling-mounted speakers in a building with plenum ceilings. Plenum speaker cable comes in standard gauges (typically 14, 16, or 18 AWG) and standard 2-conductor or 4-conductor configurations.

Because the cable jacket can still burn and produce smoke during a fire. Plenum requirements are about fire safety: any cable that passes through a return-air plenum space must produce minimal toxic smoke when burned, regardless of whether it carries electrical signal or light. Plenum fiber optic cable uses the same fire-retardant jacket materials as plenum copper cable. The rating designation is different (OFNP for non-conductive optical fiber, OFCP for conductive armored optical fiber), but the underlying requirement and benefits are the same.

Yes, and this is normal practice. Plenum cable is required only where the cable passes through plenum spaces; in other parts of the installation (within walls on the same floor, in conduit, in equipment racks below the ceiling), non-plenum cable is fine. A typical commercial AV installation uses plenum cable for the ceiling and inter-floor runs, and non-plenum cable for short runs within equipment racks and within walls on a single floor. Always know which portion of each cable run passes through plenum spaces, and use plenum-rated cable for those portions.

The cost premium varies by cable type. For inexpensive cables like CAT5e and basic speaker cable, plenum versions cost 20 to 50 percent more than non-plenum. For more complex cables like HDMI, fiber, or specialty AV cables, the premium can be 50 to 100 percent or higher. Across a complete commercial installation, the plenum cable cost typically adds 10 to 30 percent to the total cable budget. This is unavoidable where plenum is required by code, so always budget for plenum cable on commercial projects in plenum-ceiling buildings.

Plenum speaker cable in restaurants, retail, schools, offices, and any commercial installation with ceiling-mounted speakers in plenum buildings. Plenum coaxial cable in security and CCTV installations (cameras to recording servers), satellite TV distribution in hospitality, and broadcast monitoring chains. Plenum fiber optic cable in AV-over-IP backbones across large buildings, in cross-floor backbone runs, and in any high-bandwidth or long-distance AV path through plenum spaces. Plenum USB and IR control cables in conference rooms, classrooms, and any AV installation where these signals must extend through plenum spaces to reach displays or source equipment.
