Description
When maintaining operating uptime in a data center or server room, sustainable energy efficiency can make all the difference. The implementation of effective power management often involves improvements at both the hardware and software level. ATEN is introducing its latest PG series of PDUs, available in IEC socket configuration, that are designed with 1U rack housing to accommodate the increasing demand for power to high-density IT equipment in server rooms and data centers. Each PG6308 PDU, utilizing an ARM-Cortex A8 processor, is equipped with 8 port outlets that can power up all connected equipment in less than 10 seconds once plugged in, and delivers the most accurate kWh energy usage data (+/-1%) for better power consumption habits, baselines, and initiative tracking. With energy saving in mind, the PG6308 is purposed to enable lower energy consumption for best practice in a network infrastructure, while promoting up to 35.04 kw equivalent of power consumption of reduced CO2 emission, reduced electricity expenses, and lower carbon taxes to pay each year
Download Manual Features

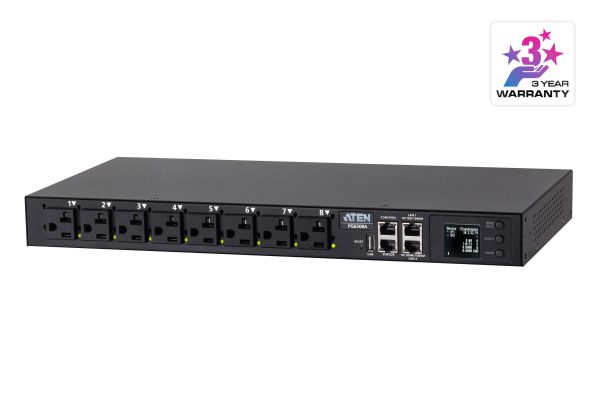

- ATEN’s PG6308 switched series intelligent PDU features 8 outlets housed in a compact 1U rack enclosure.
- Powered by an ARM Cortex-A8 processor with advanced control options through USB, COM, environmental sensors, and dual Gigabit LAN ports.
- Supports rapid deployment by powering all connected equipment within 10 seconds after plugging in.
- Allows cascading of up to 64 PDUs for enhanced cost efficiency and space optimization.

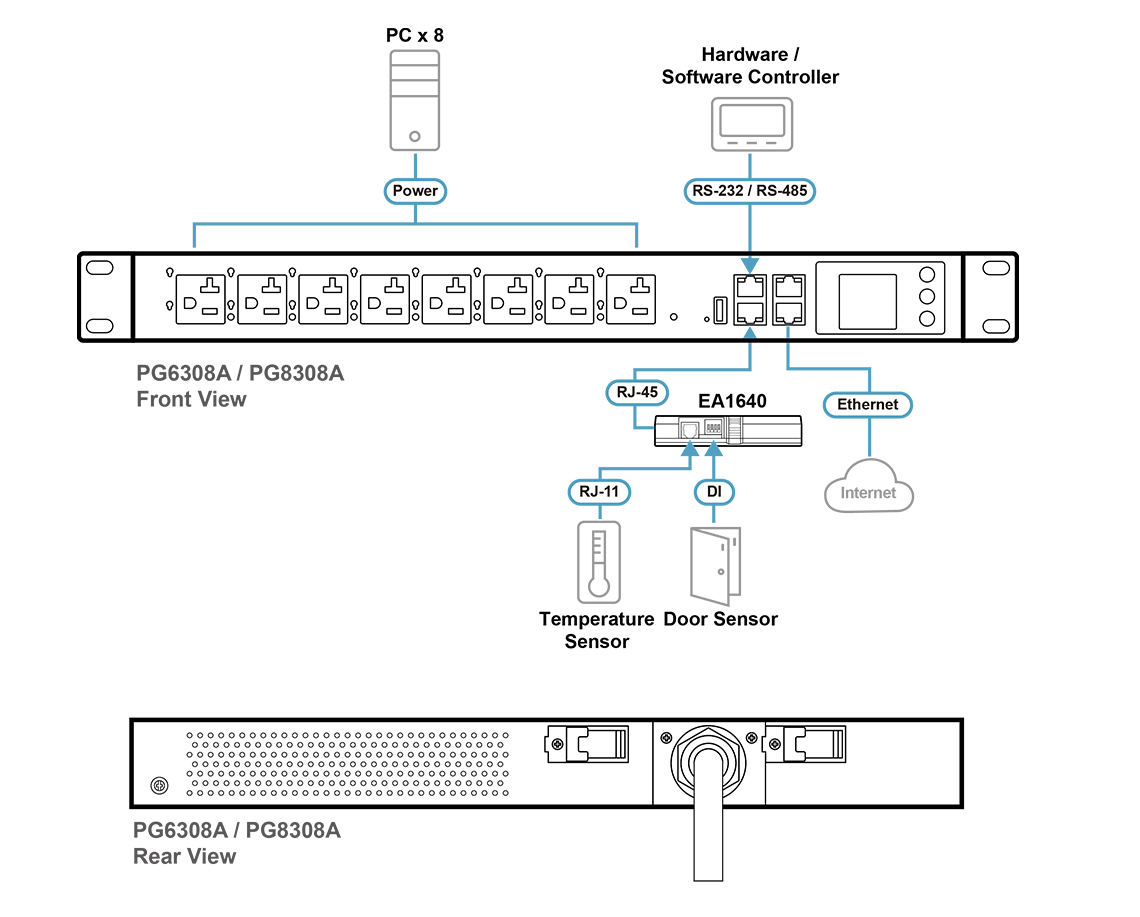

- RJ-45 sensor ports connect with EA1640 environmental sensors to monitor data center conditions.
- Provides secure, centralized, and intelligent power management for servers, storage systems, KVM switches, network devices, and serial data devices.
- Enables remote power control and real-time power measurement from virtually anywhere via IP connection.
- Supports monitoring at the PDU and bank levels depending on the model.
- Handles high voltage ranges from 100V to 240V.
- Offers precise kWh energy usage metering with ±1% accuracy for energy monitoring and efficiency tracking.
- Built-in energy-saving relays improve current flow efficiency and reduce power consumption.

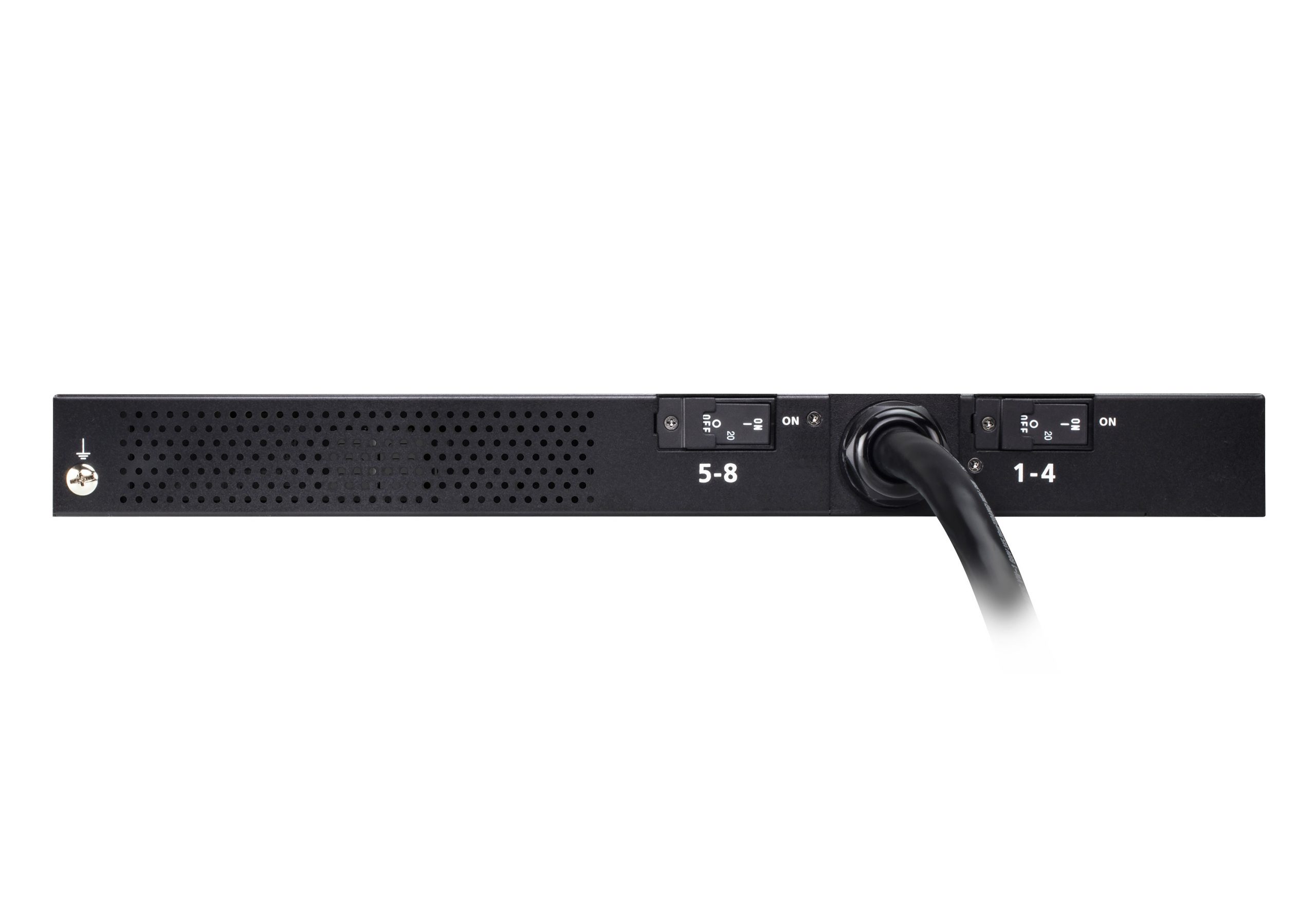

- Integrated circuit breakers support 30A or 32A currents and provide overload protection.
- Firmware is upgradeable via web GUI or USB for access to the latest features and improvements.
- Includes a green LCD console panel sticker, with optional blue, yellow, red, and purple stickers available separately.
- Ideal for enterprise server rooms, network closets, and data centers requiring intelligent power distribution and management.
-
Socket Configurations:

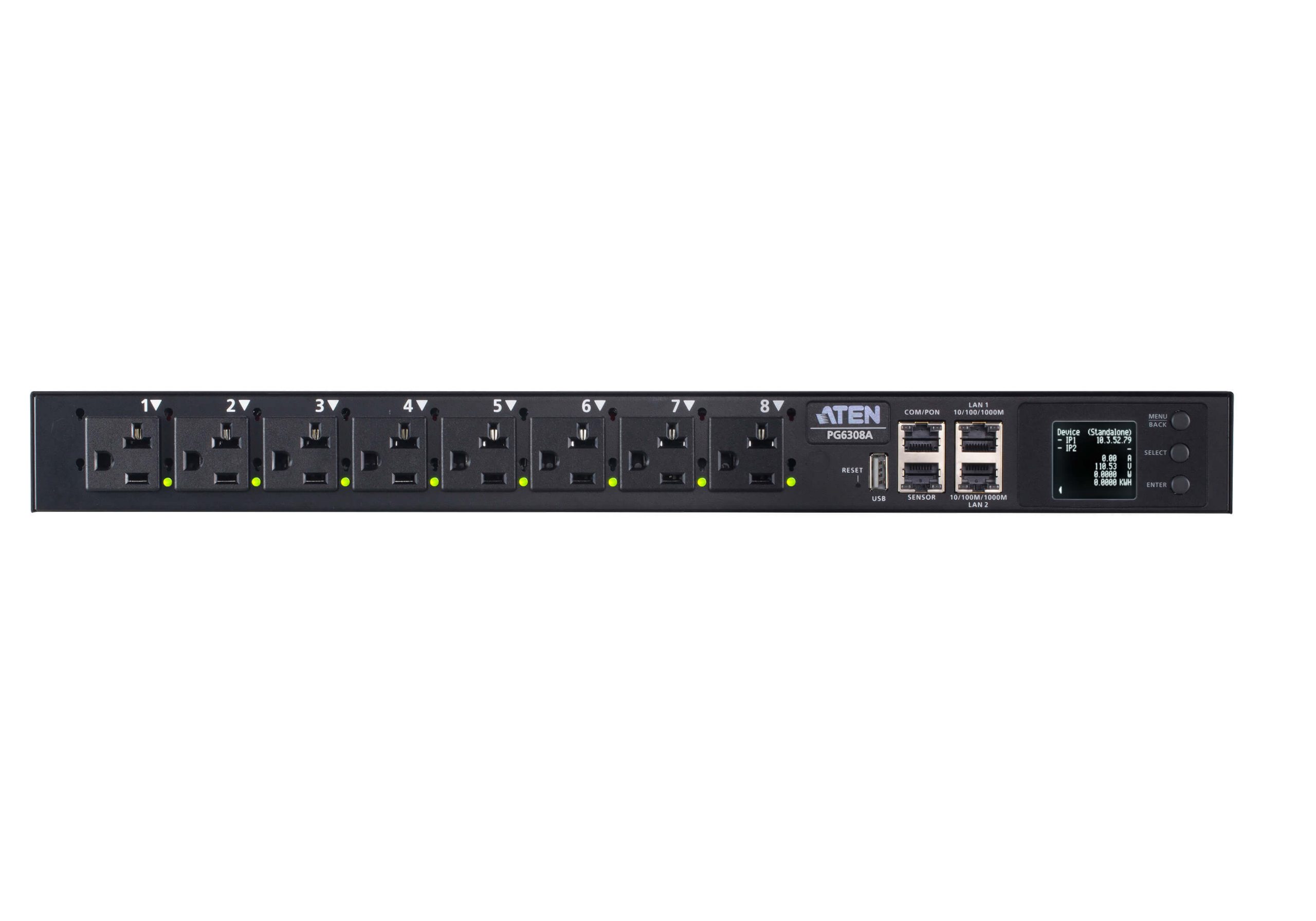

- PG6308A: 8 × NEMA 5-20R
- PG6308B / PG6308G: 6 × IEC60320 C13 and 2 × IEC60320 C19
-
Metering Features:
- Secure locking enhancement prevents accidental unplugging.
- Metering and monitoring at PDU and bank levels.
- Measures current, voltage, power, power dissipation, temperature, and humidity.
- Precise kWh metering with ±1% accuracy.
- Real-time LCD alerts for critical, alert, and warning states.
-
Network Features:
- Dual Ethernet ports support cascading up to 64 PDUs.
- Supports SNMP, Modbus, TCP/IP, and web-based management.
- Compatible with ATEN eco DC for energy and environmental monitoring.
-
Outlet Switch Control:
- Remote outlet control with On/Off and Power Cycle functions.
- Supports outlet grouping at the PDU level.
- Compatible with Wake on LAN, System After AC Back, and Kill the Power.
- Configurable power-on sequencing and delay timing.
- Proactive overload protection (POP) automatically powers off the overloaded outlet.
- Schedule control based on temperature and humidity thresholds.
- Energy-efficient relays support lower energy consumption.
