Description

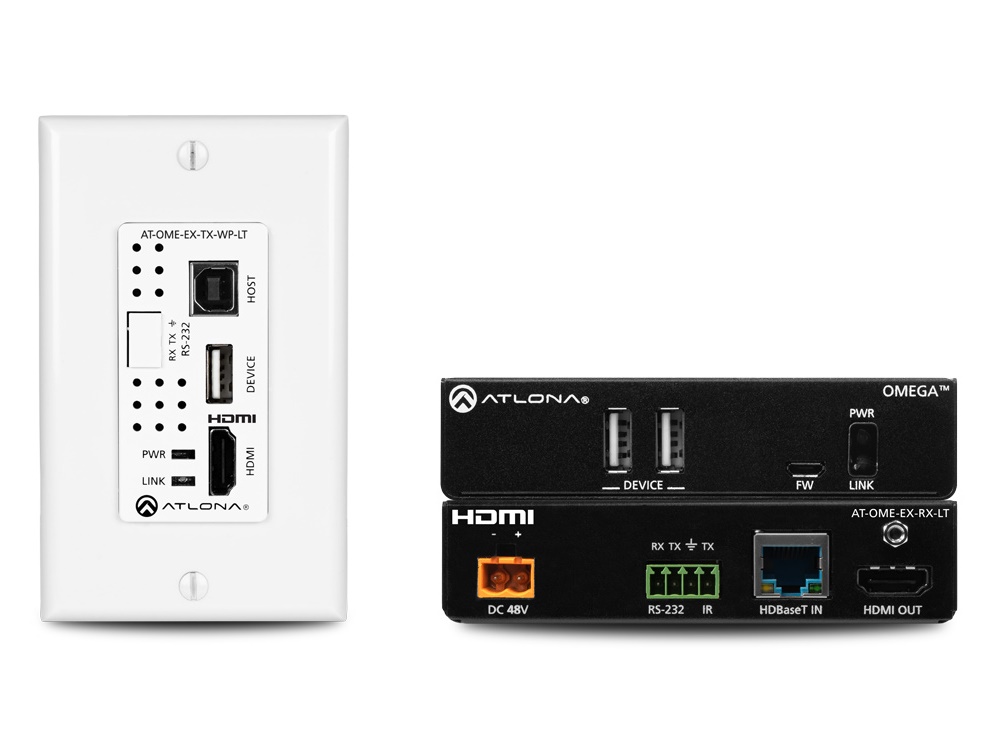

The Atlona AT-OME-EX-WP-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up to 230 feet (70 meters) for 1080p/60 video. The transmitter features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-WP-KIT-LT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. The receiver provides two USB interfaces for devices such as a camera, soundbar, or display.
The OME-EX-WP-KIT-LT incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The receiver remotely powers the transmitter over HDBaseT.
USB Extension for Video Conferencing with Zoom, Skype for Business, Microsoft Teams, and More
The OME-EX-WP-KIT-LT features integrated USB extension over HDBaseT up to 230 feet (70 meters). This capability, plus interfacing for host PCs and USB peripherals makes the OME-EX-WP-KIT ideal for video conferencing and UC (unified communications) platforms such as Zoom, Skype® for Business, Microsoft® Teams®, Cisco® Webex®, BlueJeans, and GoToMeeting®. Available from Atlona is the AT-HDVS-CAM PTZ camera with USB interface.
Applications
- Video conferencing – The OME-EX-WP-KIT-LT is ideal for soft codec and web-based conferencing applications, with the ability to integrate with a PC and speakerphone or microphone near presenters, and a camera or soundbar at the wall-mounted display.
- Classrooms – This extender kit is also ideal for classroom applications such as distance learning, with the wallplate transmitter installed on a desk or lectern for easy instructor access.
- Interactive displays – The OME-EX-WP-KIT-LT can provide AV and USB extension for a touch-enabled display, allowing remote PC control at a wall, lectern, or other location.
Product compatibility
The OME-EX-WP-KIT-LT is not compatible with the Atlona HDVS-300 system for USB extension.
Features:
Video, audio, power, and data over category cable utilizing HDBaseT technology
- Extends 4K/UHD video up to 230 feet (70 meters) @ 1080p, or up to 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation
USB 2.0 interfacing and extension* up to 230 feet (70 meters)
- Transmitter features USB type B interface for connection to a host PC, plus a USB type A port for a peripheral device such as a microphone or speakerphone
- Receiver features two USB type A ports for peripheral devices such as a camera or display
- Supports USB 2.0 devices, USB 3.0 devices compatible with USB 2.0, and legacy USB 1.x peripherals
- Provides an ideal USB integration solution for software video conferencing and other applications
- * A maximum 120 Mbps data rate is supported, due to specific USB bandwidth limitations over HDBaseT.

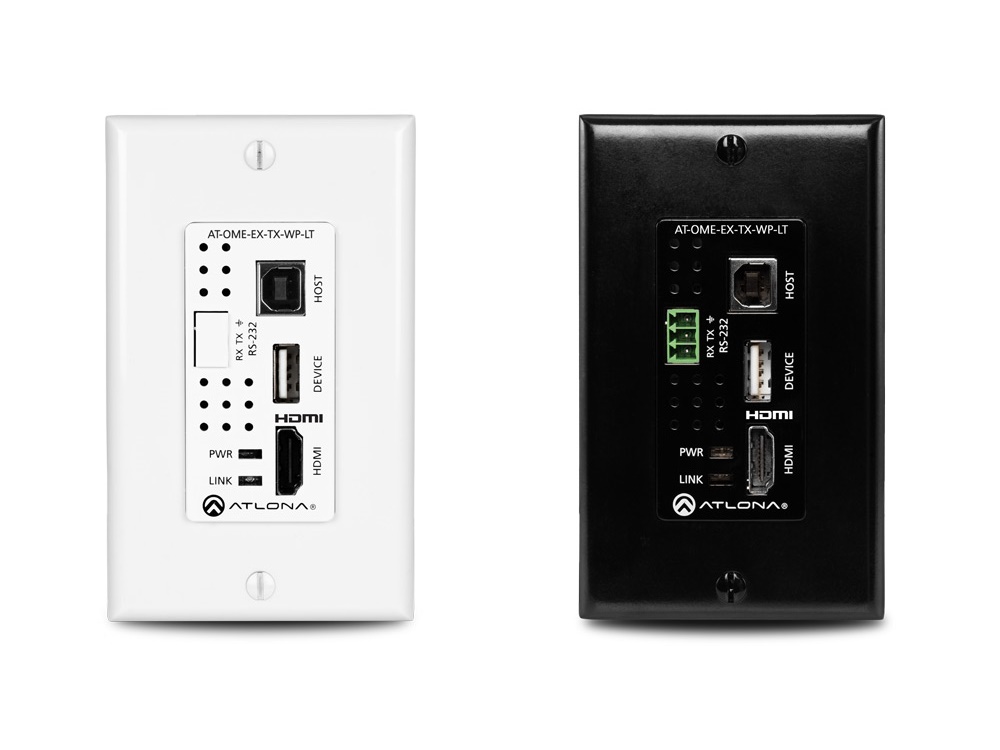

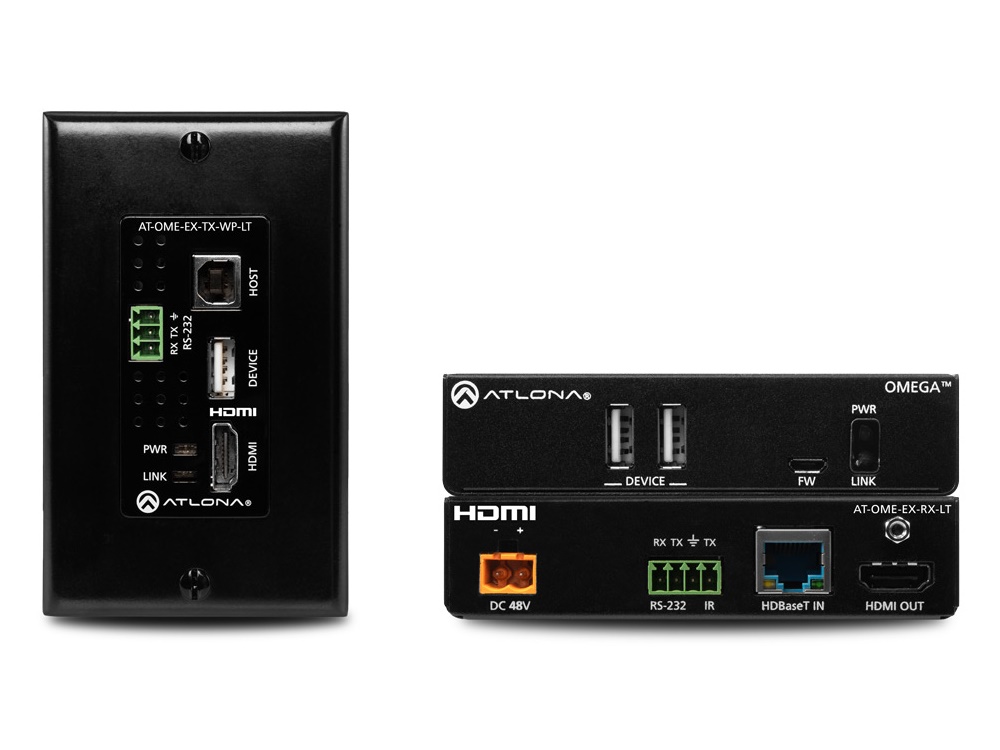

US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
- Allows inconspicuous installation on a wall, in furniture, or in a table or floor box. Includes black and white wallplates and faceplates.
- Meets end user requirements for conveniently accessible yet discreet AV connectivity
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
- Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players
HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection
- Allows protected content stream to pass between authenticated devices
Transmitter powered by receiver over HDBaseT
- Industry standard IEEE 802.3af PoE for transmitter is supplied by receiver over HDBaseT
- Allows convenient wall, table, floor box, or furniture installation without the need for local AC power
Multi-channel audio compliant
- Passes through multi-channel audio formats
- Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
HDBaseT link status testing
- Free software utility available for testing integrity of the HDBaseT cable link between the transmitter and the receiver
- Provides real-time link status, plus detailed HDBaseT and HDMI signal information
- Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality
Field-updatable firmware
- Device can be updated in the field via the USB port
Front panel power and signal status LEDs
- LED indicators provide power and HDBaseT link status information
- Provides convenient setup and troubleshooting
Low-profile, 1.02 inch (26 mm) high enclosure (receiver)
- Easy installation into confined spaces below tables, in furniture, and behind or above displays
Included accessories
- Installation guide, interchangeable black and white wallplates and faceplates, surface mounting hardware, and external universal power supply
Award-winning 10 year limited product warranty
- Ensures long-term product reliability and performance in commercial and residential systems
- Specify, purchase, and install with confidence
Specifications
AT-OME-EX-TX-WP-LT
| Video |
| Signal |
HDMI |
| Copy Protection |
HDCP 2.2 |
| Pixel Clock |
300 MHz |
| UHD/HD/SD |
4096x2160@60(2)/50/30/25/24Hz
3840×2160@60(2)/50/30/25/24Hz
1080p@60/59.9/50/30/29.97/25/24/23.98Hz
1080i@30/29.97/25Hz |
720p@60/59.94/50Hz
576p@50Hz
576i@25Hz
480p@60/59.96Hz
480i@30Hz |
VESA
All resolutions are 60Hz |
2560×1600
2048×1536
1920×1200
1680×1050
1600×1200
1440×900
1400×1050
1280×1024 |
1280×800
1366×768
1360×768
1152×864
1024×768
800×600
640×480 |
| Color Space |
YUV, RGB |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Color Depth |
8-bit, 10-bit, 12-bit |
| Audio |
| HDMI |
PCM 2.0
LPCM 5.1
LPCM 7.1 |
Dolby® Digital
Dolby Digital Plus™
Dolby TrueHD
Dolby Atmos® |
DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X® |
| Bit Depth |
up to 24-bit |
| Sample Rate |
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| USB |
| Signal(1) |
2.0 |
| Maximum Data Rate |
120 Mbps |
| RS-232 |
| Port |
1 x 3-pin captive screw (RX, TX, GND only) |
| Use |
Pass-through from control system to sink device |
| Baud Rates |
2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data flow |
Bidirectional |
| CEC |
| Port |
1 x HDMI, Type A, 19-pin female |
| Triggering |
RS-232 |
| Resolution / Distance |
4K/UHD - Feet / Meters |
1080p - Feet / Meters |
| HDMI IN/OUT |
15 |
5 |
30 |
10 |
| CAT5e |
115 |
35 |
200 |
60 |
| CAT6/6a/7 |
130 |
40 |
230 |
70 |
| Buttons and Indicators |
Indicators:
POWER
LINK |
1 x LED, green
1 x LED, yellow |
| Connectors |
| HDMI |
1 - Type A, 19-pin, female |
| HDBaseT OUT |
1 - RJ45 |
| HOST |
1 - USB Type-B |
| DEVICE |
1 - USB Type-A |
| RS-232 |
1- captive screw, 3-pin |
| Environmental |
| Operating Temperature |
+32° to +122° F
0° to +50° C |
| Storage Temperature |
-4° to +140° F
-20° to +60° C |
| Operating Humidity (RH) |
+20 to +90%, non-condensing |
| Power |
| Consumption |
11.18 W (includes 2.5 W for USB, powered by RX) |
| USB Power |
2.5 W USB device interface |
| Dimensions |
| Unit (H x W x D) |
4.07 in x 1.80 in x 2.63 in
103.50 mm x 45.80 mm x 67.00 mm |
| Weight |
Pounds |
Kilograms |
| Device |
0.40 |
0.18 |
| Certification |
| Device |
CE, RoHS, FCC |
AT-OME-EX-RX-LT
| Video |
| Signal |
HDMI |
| Copy Protection |
HDCP 2.2 |
| Pixel Clock |
300 MHz |
| UHD/HD/SD |
4096x2160@60(2)/50/30/25/24Hz
3840×2160@60(2)/50/30/25/24Hz
1080p@60/59.9/50/30/29.97/25/24/23.98Hz
1080i@30/29.97/25Hz |
720p@60/59.94/50Hz
576p@50Hz
576i@25Hz
480p@60/59.96Hz
480i@30Hz |
VESA
All resolutions are 60Hz |
2560×1600
2048×1536
1920×1200
1680×1050
1600×1200
1440×900
1400×1050
1280×1024 |
1280×800
1366×768
1360×768
1152×864
1024×768
800×600
640×480 |
| Color Space |
YUV, RGB |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Color Depth |
8-bit, 10-bit, 12-bit |
| Audio |
| HDMI |
PCM 2.0
LPCM 5.1
LPCM 7.1 |
Dolby® Digital
Dolby Digital Plus™
Dolby TrueHD
Dolby Atmos® |
DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X® |
| Bit Depth |
up to 24-bit |
| Sample Rate |
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| USB |
| Signal |
2.0 |
| Maximum Data Rate |
120 Mbps |
| RS-232 |
| Port |
1 x 4-pin captive screw (RX, TX, GND only) |
| Use |
Pass-through from control system to sink device |
| Baud Rates |
2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data flow |
Bidirectional |
| IR |
| Port |
1 x 4-pin captive screw (TX and GND only) |
| Use |
Pass-through from control system to sink device |
| Frequency Range |
30 kHz to 60 kHz |
| CEC |
| Port |
1 x HDMI, Type A, 19-pin female |
| Triggering |
IP, RS-232 |
| Resolution / Distance |
4K/UHD - Feet / Meters |
1080p - Feet / Meters |
| HDMI IN/OUT |
15 |
5 |
30 |
10 |
| CAT5e |
115 |
35 |
200 |
60 |
| CAT6/6a/7 |
130 |
40 |
230 |
70 |
| Buttons and Indicators |
Indicators:
POWER
LINK |
1 x LED, green
1 x LED, yellow |
| Connectors |
| HDMI OUT |
1 - Type A, 19-pin female |
| FW |
1 - mini-USB |
| HDBaseT IN |
1 - RJ45 |
| DEVICE |
2 - USB Type-A |
| RS-232 / IR |
1 - captive screw, 4-pin |
| DC 48V |
1 - 3-pin DIN |
| Environmental |
| Operating Temperature |
+32° to +122° F
0° to +50° C |
| Storage Temperature |
-4° to +140° F
-20° to +60° C |
| Operating Humidity (RH) |
+20 to +90%, non-condensing |
| Power |
| Consumption |
18.67 W |
| USB Power |
2.5 W per USB device interface |
| External Power Supply |
Input: 100 - 240 V AC, 50/60 Hz
Output: 48 V, 0.83 A DC |
| Safety |
CE, FCC, cULus |
| Dimensions (H x W x D) |
Inches |
Millimeters |
| Unit |
1.02 x 4.29 x 5.00 |
26 x 109 x 127 |
| Power Supply (AT-PS-48083-D3) |
1.42 x 1.81 x 4.41 |
36 x 46 x 112 |
| Weight |
Pounds |
Kilograms |
| Device |
0.89 |
0.41 |
| Certification |
| Device |
CE, RoHS, FCC |
(1)Maximum 120 Mbps data rate supported over HDBaseT.
(2)Only supports 4:2:0.
